Build Tips

Tranny

1
Click to enlarge

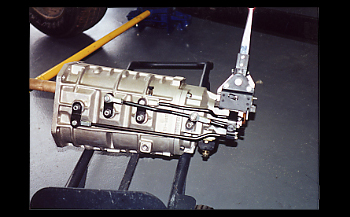

A six speed tranny of the Richmond variety with a Long's machine shifter used in Pro Stock racers will be installed in a 67 Chevelle project with a 500 horse aluminum head motor. We will build a custom tranny tunnel to clear the transmission and linkage and still keep it rounded like the factory so we can use original style molded carpet.

2
Click to enlarge

After some preliminary measurements and the Motor and Trans installed in our Chevelle project Doc takes off on the English wheel to wheel out a new trans tunnel cover.

3
Click to enlarge

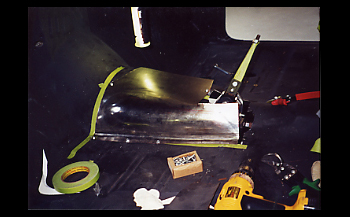

It is starting to come together as we test the shifter and linkage for proper clearance etc.

4
Click to enlarge

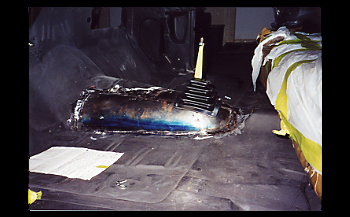

We installed the original style bench seat to check the shifter throw clearance.

5
Click to enlarge

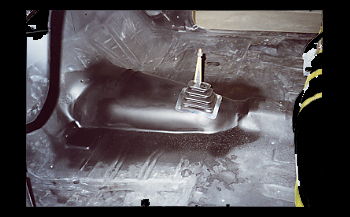

Looking good and ready to be carpeted when the project is finished.
