Build Tips

Rear Body Panel

1
Click to enlarge

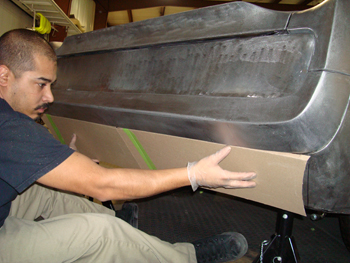

We start off by making the template fit our newly fab'd bumper.

2
Click to enlarge

Matching the template we cut out some new metal.

3
Click to enlarge

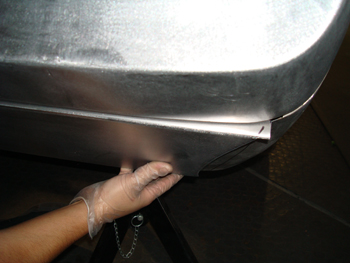

As seen the pan needs some curve to match. It is out 1 inch on the ends and gradually goes to flush in the center so we need to tweak it across the panel.

4
Click to enlarge

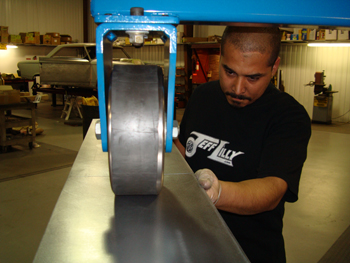

A little wheeling and she is starting to take shape.

5
Click to enlarge

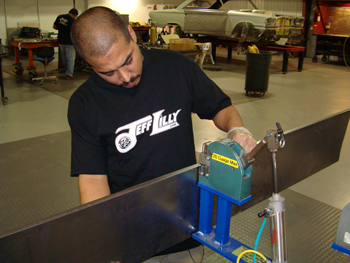

Over to the power stretcher / shrinker we start in the middle and work our way out to the ends. The idea is to curve the metal gradually until it fits exactly. The shrinking die pulls it together which curves it inward bit by bit.

6
Click to enlarge

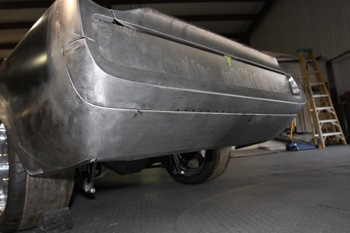

As seen she fits good.

7
Click to enlarge

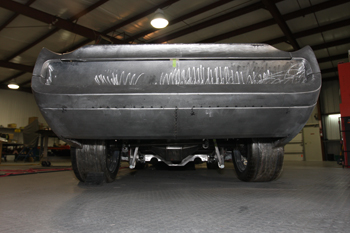

Rear shot shows all the custom metal work. Very stylish.
