Build Tips

Custom Stereos

1
Click to enlarge

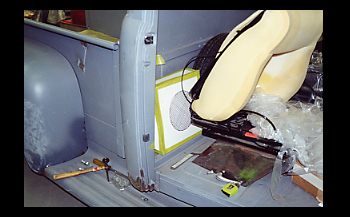

When we build Custom Speaker enclosures we usually hide them or make them fit in a particular area for a natural look.

2
Click to enlarge

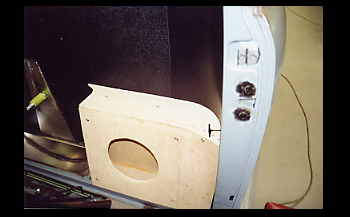

As seen these were built from special MDF to accept 8 inch drivers and to fit behind the seat in our 50 Truck project. If you look close there are tiny relief slots close to the striker post for the seat belt straps to fit through the boxes.

3
Click to enlarge

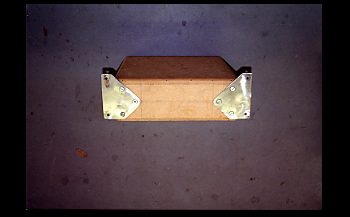

The bottom side shows stainless brackets to attach the boxes firmly to the floor for safety.

4
Click to enlarge

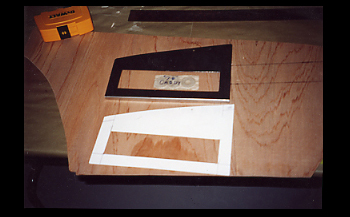

Hiding Stereo components in the trunk is a common approach when you want to keep the interior original looking. The luan wood panel shown was built to fit in a side trunk opening and the template and metal bracket made from such to hold a CD changer is about ready to install.

5
Click to enlarge

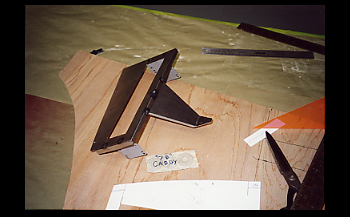

Other bracketry is made to hold components and support the back side weight of a large amp capable of powering up a large cockpit.

6
Click to enlarge

All components installed in to the side trunk pocket.

7
Click to enlarge

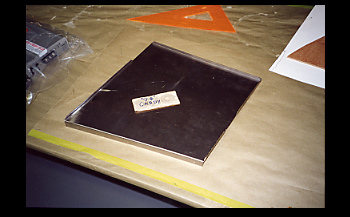

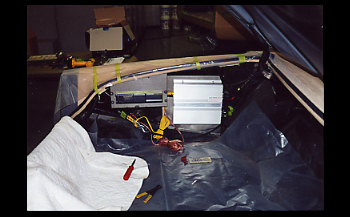

As seen the changer bracket was out fitted with a support to hold it in place and assist holding the weight of the CD changer weight .

8
Click to enlarge

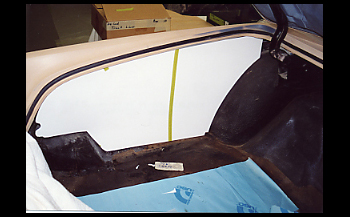

Mock up cover made in paper board will be transferred over on to Luan 3/16 thick materials.

9
Click to enlarge

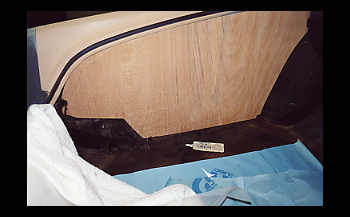

Luan panel easily removes for any serving needed. We will cover this with trunk materials so a stealth objective is met.

10
Click to enlarge

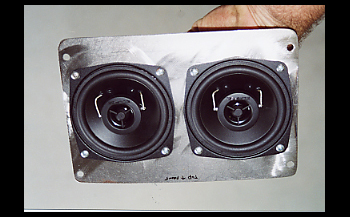

These dual speakers have been mounted in a custom fabricated steel support bracket which will be installed directly under the factory center speaker cover.

11
Click to enlarge

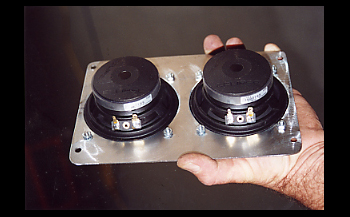

A look from the underside.

12
Click to enlarge

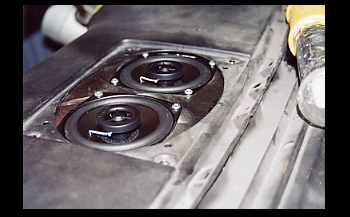

Mounted and in place.

13
Click to enlarge

The factory cover is in place and ready for action. The original look but tremendous better sound quality will come from with in!
