Build Tips

Bead Roll

1
Click to enlarge

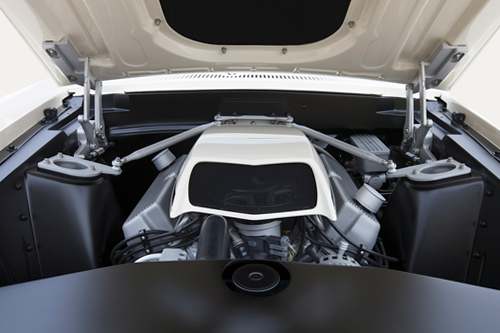

We are building the inner aprons on the is Ford and removing the factory Battery tray which is unsightly. We use a Mittler Bead roller to put in the beads, The Customer wants the engine bay to have a stock appearance so this tool will do the trick.

2
Click to enlarge

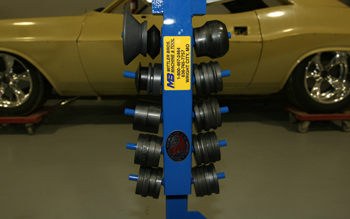

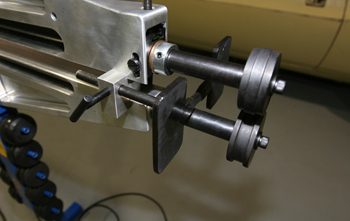

Mittler has every conceivable bead we could ever need.

3
Click to enlarge

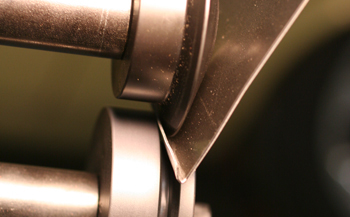

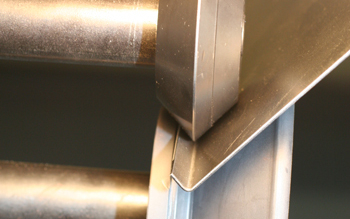

When bending over a panel to strengthen the lip this roller set works great. We simply make a few passes to bend it over then use a flat wheel to finish it.

4
Click to enlarge

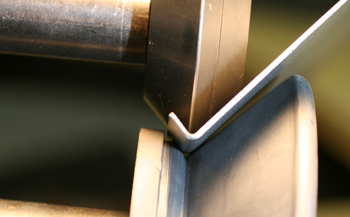

Here is another angle.

5
Click to enlarge

This thinner bead gets it even tighter

6
Click to enlarge

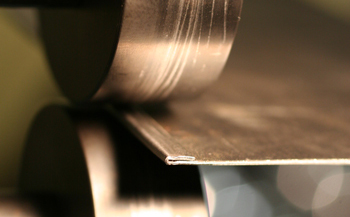

Then the flat roller finishes it off for strength.

7
Click to enlarge

This is the driver side panel and we will duplicate this panel.

8
Click to enlarge

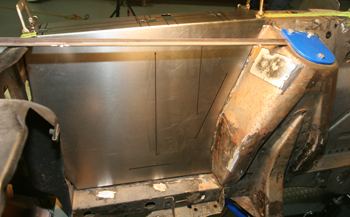

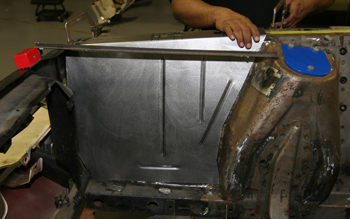

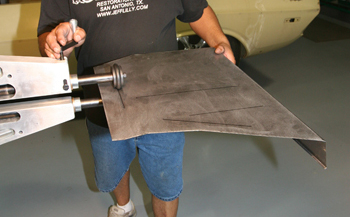

The passenger side had a large shelf for the battery tray and we need the room for some components so we are going to eliminate the shelf for room and looks. As seen we have removed the old apron and marked the location where the beads need to be done on the new panel.

9
Click to enlarge

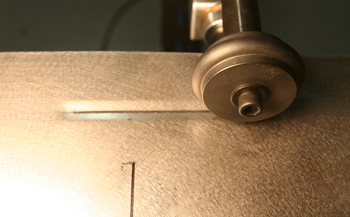

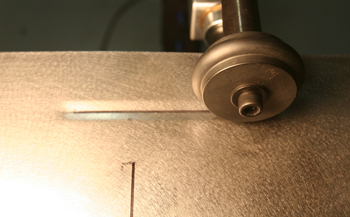

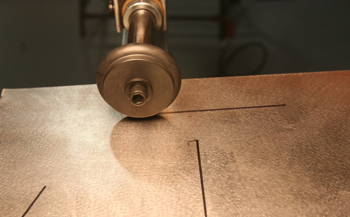

We start with the end and apply a bit of pressure and using the foot controller we lay down some factory looking beads.

10
Click to enlarge

Sweet and fast.

11
Click to enlarge

No pressure on the panel just let it glide.

12
Click to enlarge

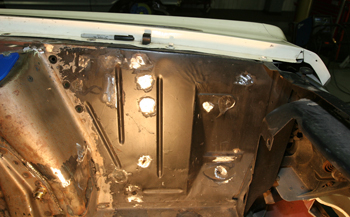

Re- install and weld in the panel.

13
Click to enlarge

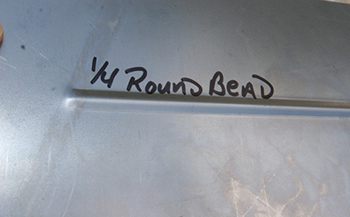

As seen a 1/4 round bead

14
Click to enlarge

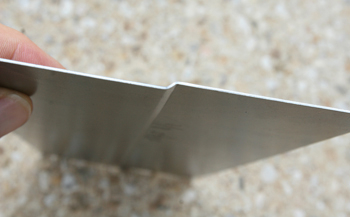

Step bead

15
Click to enlarge

1/8th step from a different angle.

16
Click to enlarge

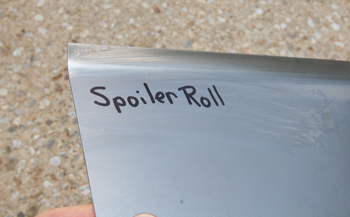

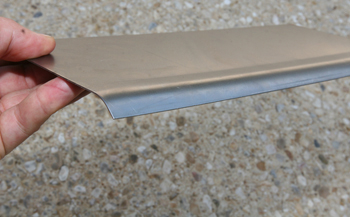

Spoiler roll.

17
Click to enlarge

Spoiler roll different angle.

18
Click to enlarge

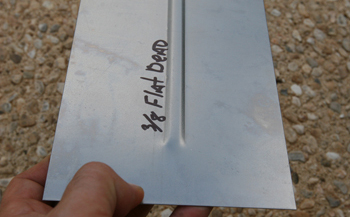

3/8 flat bead

19
Click to enlarge

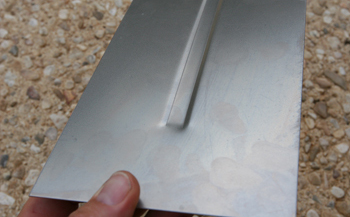

Opposite side 3/8 flat bead, to show a few different ones.
