Camaro Front Mock Up #1

1
Click to enlarge

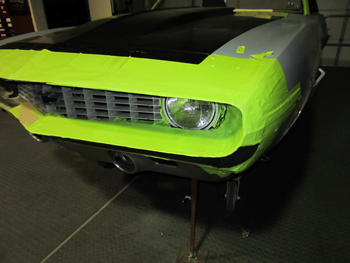

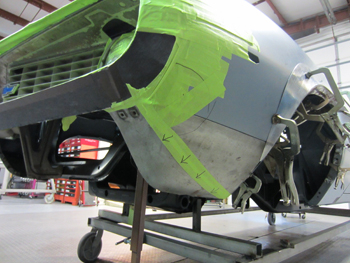

like the overall style that G.M. did on the 69 front end but I have always felt it had too large of a grille opening for such a small bodied car. As seen I am going to extend the original curved fender shape approximately 2.5 inches longer while retaining the same contour.

2
Click to enlarge

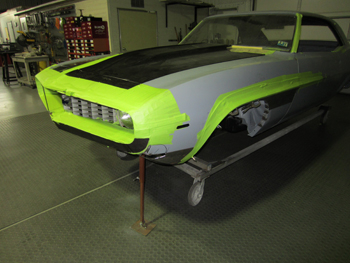

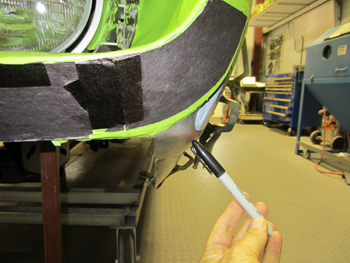

Two of the main reasons for extending the fender is to allow placement of the head lights deeper in to the grille opening to eliminate the "marty feldman" bulging eye light surrounds for a deep set aggressive look.

3
Click to enlarge

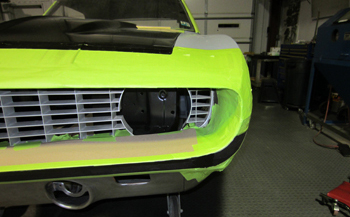

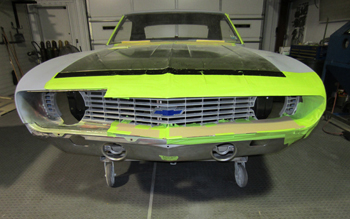

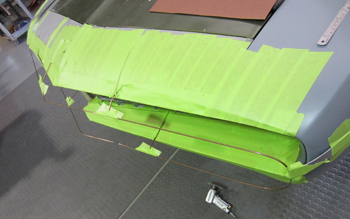

I ran a 1/8th mock up wire around the perimeter with the same 2.5 inch extension to give me a 3D look.

4
Click to enlarge

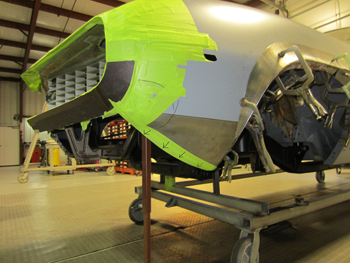

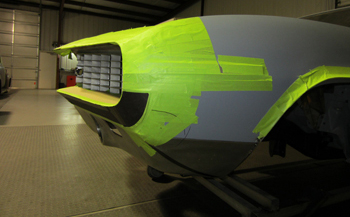

For mock up purposes the center and outer grille sections were cut and moved together. This allowed me to retain the original G.M. head light while greatly reducing the trim cover size around the perimeter of the sealed beam.

5
Click to enlarge

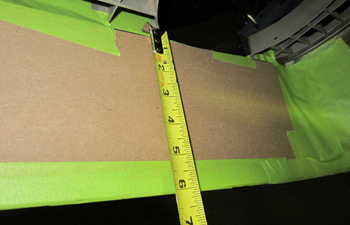

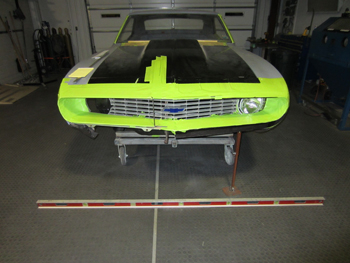

Look at the factory grille opening on the passenger side, 9 inches tall, compared to the revised 7.5 inch tall driver side. Tighter is meaner looking. In my " humble" opinion of course!

6
Click to enlarge

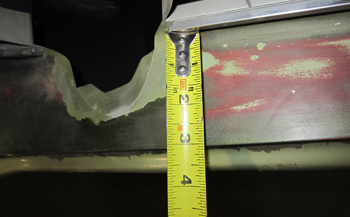

I will also be implementing a smooth front bumper with no restrictions to the fender and lower valance panel.

7
Click to enlarge

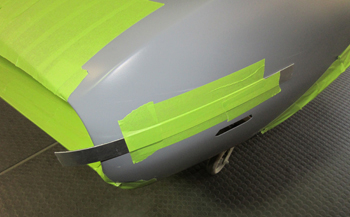

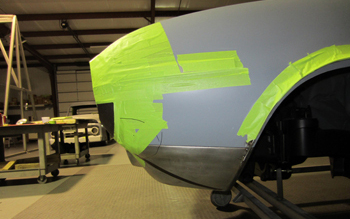

The black sharpie marker line is where we will angle our new valance panel. I want a free flowing splash pan up front.

8
Click to enlarge

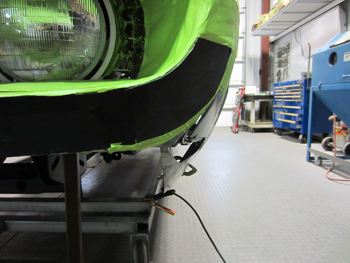

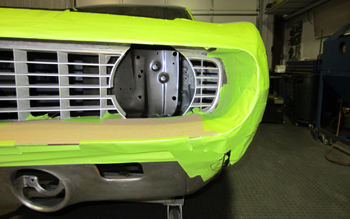

This angle shows the mock up of the wrap around front bumper to scale.

9
Click to enlarge

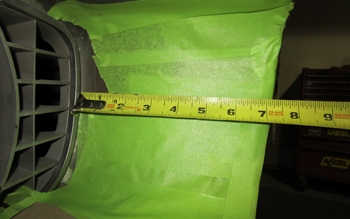

By extending the fender the grille set back is now seven inches deep.

10
Click to enlarge

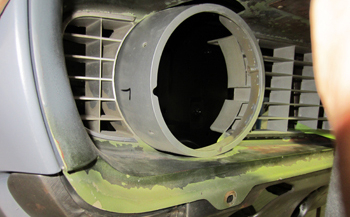

The original passenger side set back shows 6 inches in depth.

11
Click to enlarge

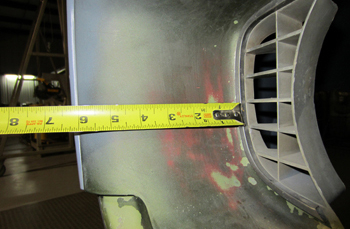

Factory inset on the bottom is just a hair over 3 5/8

12
Click to enlarge

New inset on the driver side mock up is at 6 inches, a major difference.

13
Click to enlarge

Take a closer look and you will see that I extended the hood 3.5 inches. The stock hood was shorter then it needed to be in its factory form especially when using the cowl hood and this allows a shorter header panel which is cleaner looking. Eventually the header and drain cowl panel will be welded to the fenders for a "Corvette " style front clip.

14
Click to enlarge

The factory lower valance does not flow with the new bumper style. We have it marked where we propose to cut it.

15
Click to enlarge

As seen she is going on a diet and looking a bit slimmer.

16
Click to enlarge

This angle shows how the stock valance sticks out past the flow of the mock up bumper which is not in keeping with my design so a bit more slicing is in order.

17
Click to enlarge

With it trimmed back it allows me to see how it will flow when we build the metal panels.

18
Click to enlarge

Angle view shows a clean looking front end.

19
Click to enlarge

Photographed, measured and documented. We now have a complete plan to build it in metal.
